We have successfully delivered more than 1,300 projects over the years. To demonstrate our breadth and depth of experience, we have a selected a sample of recent projects to showcase.

Cold Storage & Distribution Facility

Scope of work

Design, supply and installation of a refrigeration plant room, complete with:

Two NH3 Mycom I-series screw compressors on VSD;
Glycol plate heat exchanger package and high side float;

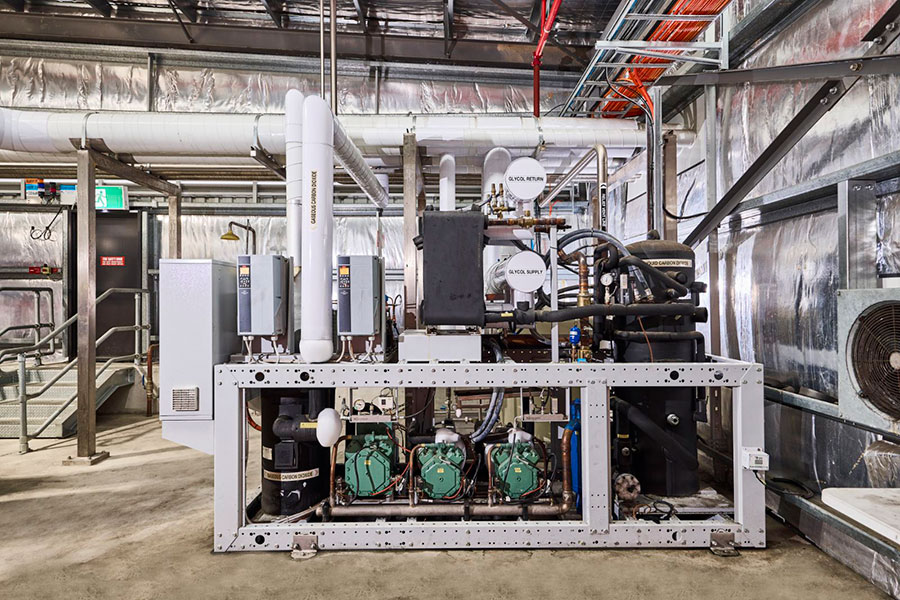

SMC Frigo 56kw CO2 compressor rack;

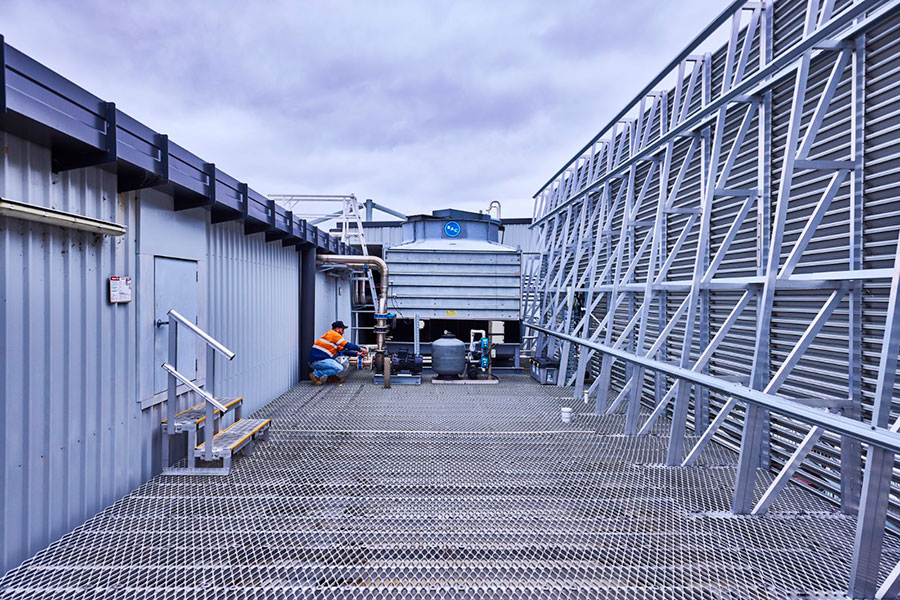

Evapco cooling tower;
PLC and SCADA system;

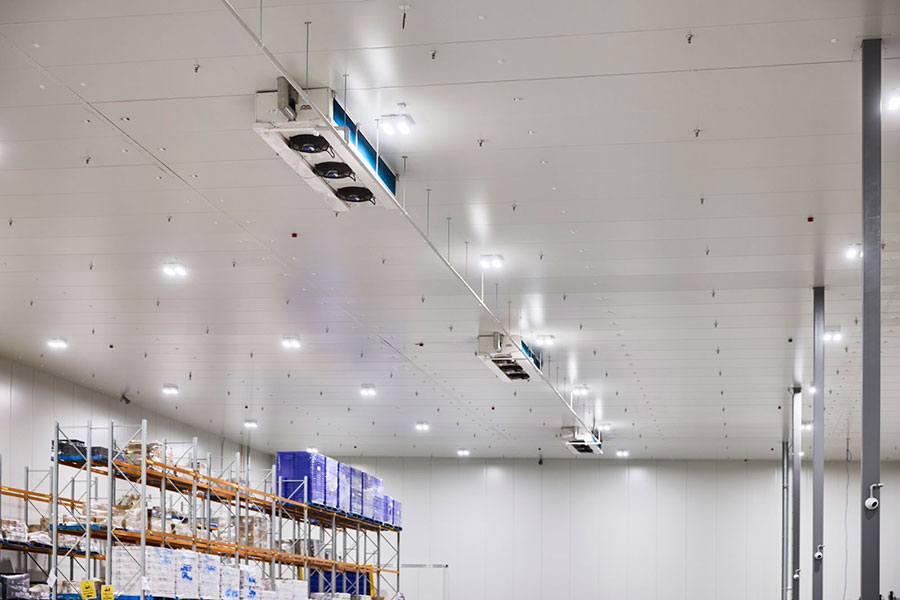

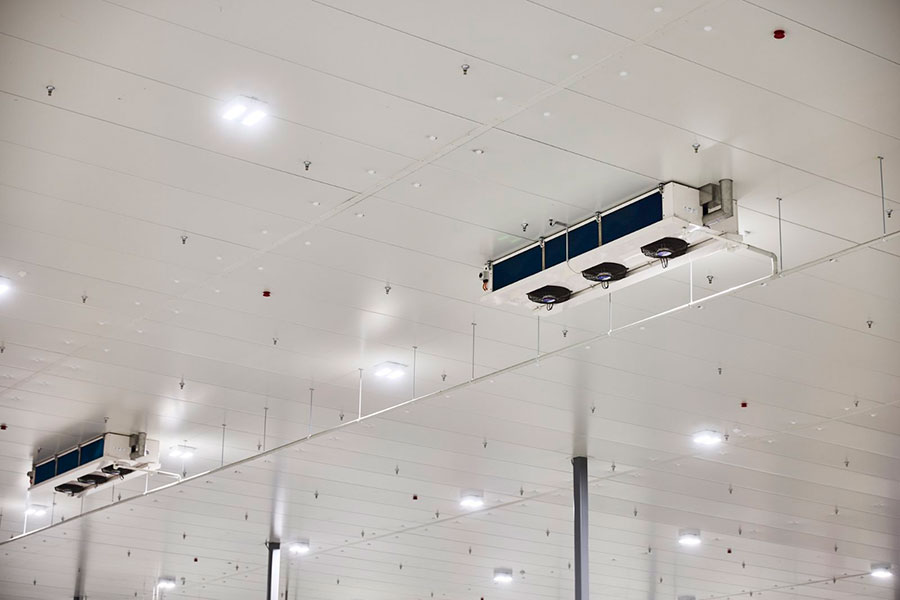

Ceiling hung fan coil units in annex and production areas on pumped glycol;
DX CO2 evaporators for the holding freezer; and
NH3 and CO2 detection system.

Client: Marley Spoon

Location: Wetherill Park, New South Wales

Freezer & Chiller Extension

Scope of work

Supply and installation of additional equipment, including:

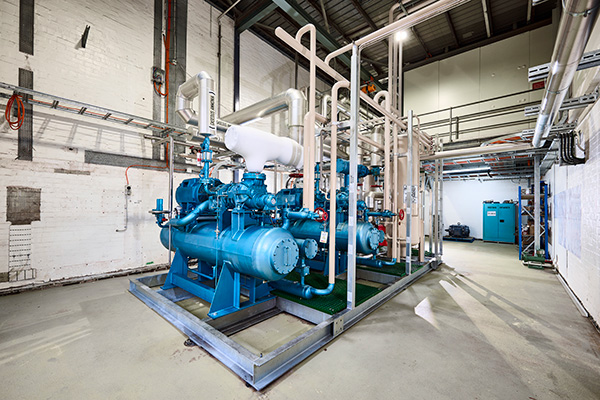

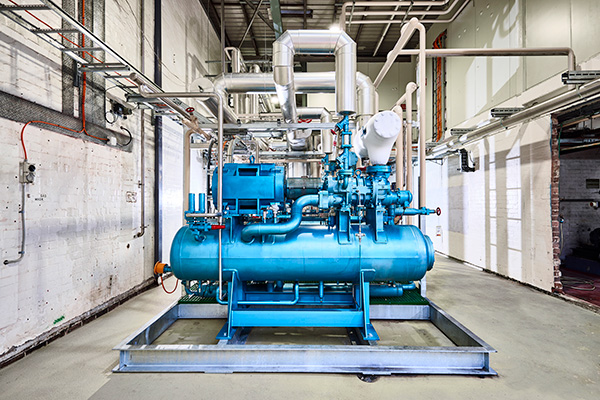

Two Mycom 160 screw compressors on VSD;
Vertical high-pressure receiver, low and high temperature accumulator package with NH3 pumps;
PLC and SCADA system;
NH3 detection system;
Ceiling hung fan evaporators on pumped ammonia with changeover valves to existing ammonia plant for redundancy; and
High-pressure liquid feed to production machinery.

Client: Australian Bakels

Location: Silverwater, New South Wales

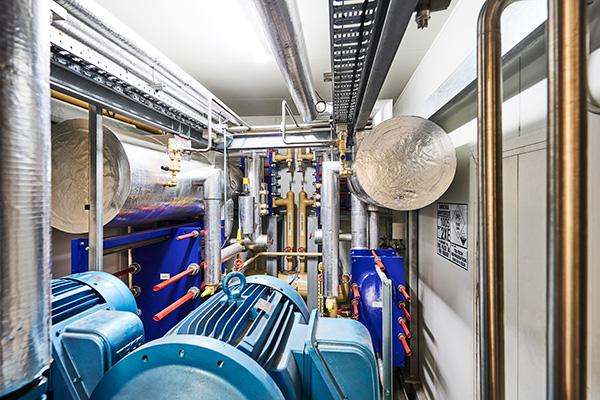

Centralised Glycol Plant

Scope of work

Design, supply and installation of glycol chiller plant, complete with:

One Bitzer duo compressor package with VSD;
One Bitzer tri compressor package with VSD;
High temperature PHE / Surge Drum package (-2C);
Low temperature PHE / Surge Drum package (-10C);
-2C glycol tank, primary pump package and field pipework;
-10C glycol tank, primary pump package and field pipework;
Acoustic enclosure for compressors;
NH3 detection and ventilation system;
PLC and HMI system;
High-pressure liquid receiver; and

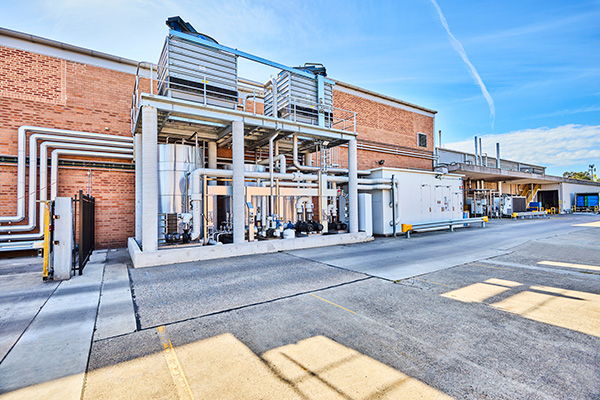

Two BAC cooling towers.

Client: Goodman Fielder

Location: Moorebank, New South Wales

Cold Storage & Processing Facility

Scope of work

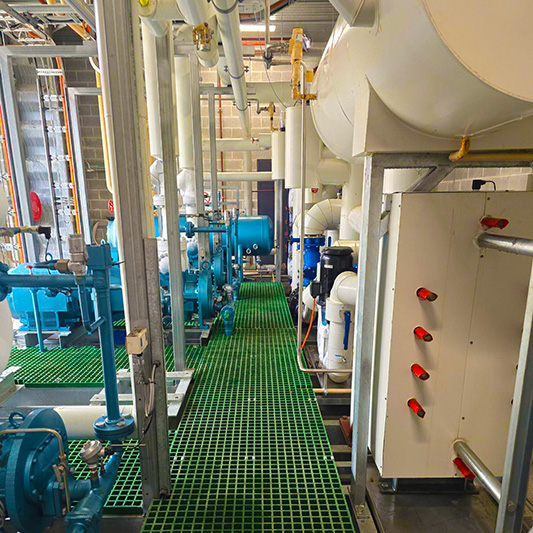

Design, supply and installation of a refrigeration plant room, complete with:

Prefabricated packaged MT and LT ammonia refrigeration system;
MT (900kw) and LT (200kw) glycol / ammonia Alfa Laval PHE;
Two MT NH3 Mycom I-series screw compressors on VSD (space added for future);
One LT NH3 Mycom I-series screw compressor on VSD;
NH3, LEL detection and ventilation system;

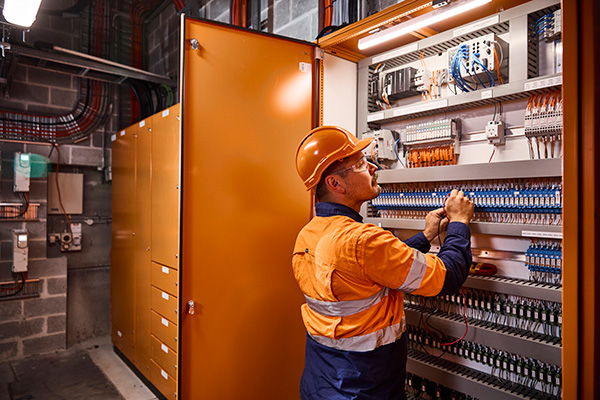

PLC and SCADA system with SMS alarms;
Priority liquid receiver for thermosyphon oil cooling;
Katabatic 1500kw evaporative condenser;
Heat reclaim desuperheater for warm glycol defrost and thaw rooms;
Ceiling-hung Katabatic MT glycol fan coil units in chiller and production rooms;
Ceiling-hung Katabatic LT glycol fan coil units with warm glycol defrost in freezer; and
Glycol to chilled water PHE set for production cooling.

Client: Meyer Food Co.

Location: Kings Park, New South Wales

Refrigeration Plant & Spiral Freezer

Scope of work

Supply and installation of new refrigeration plant package and spiral freezer, complete with:

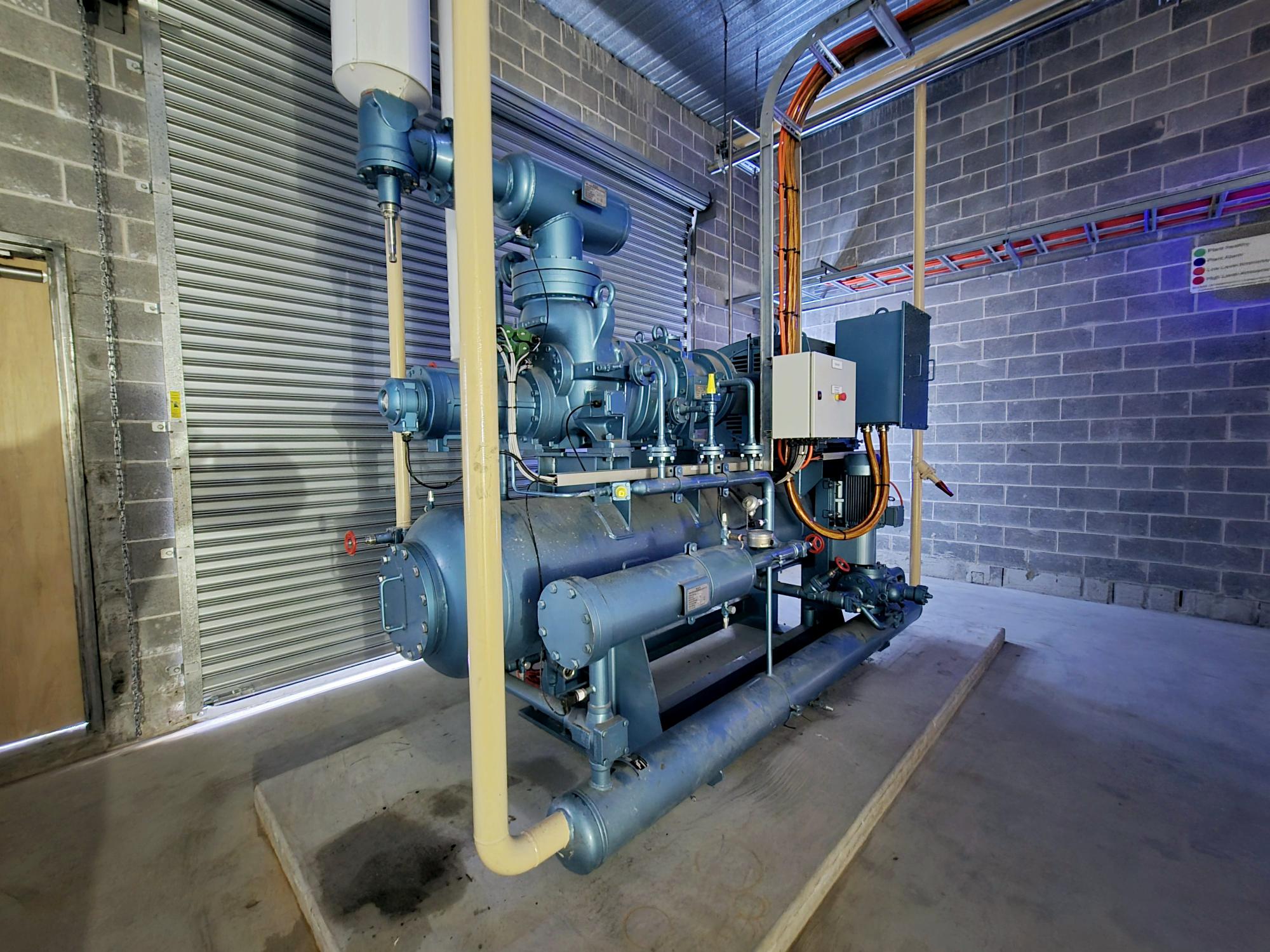

Two Mycom 220JL-V ammonia compressor package with VSD;

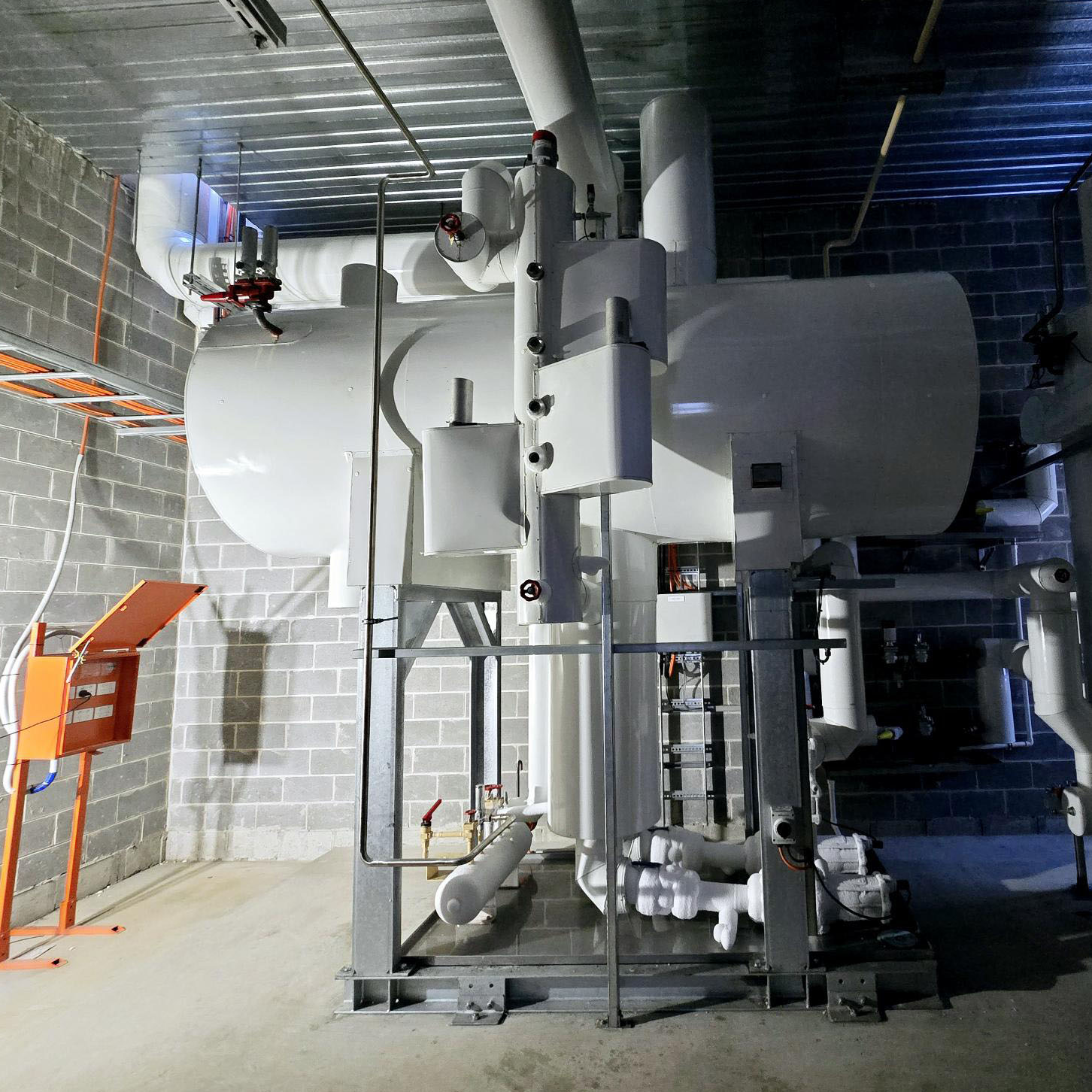

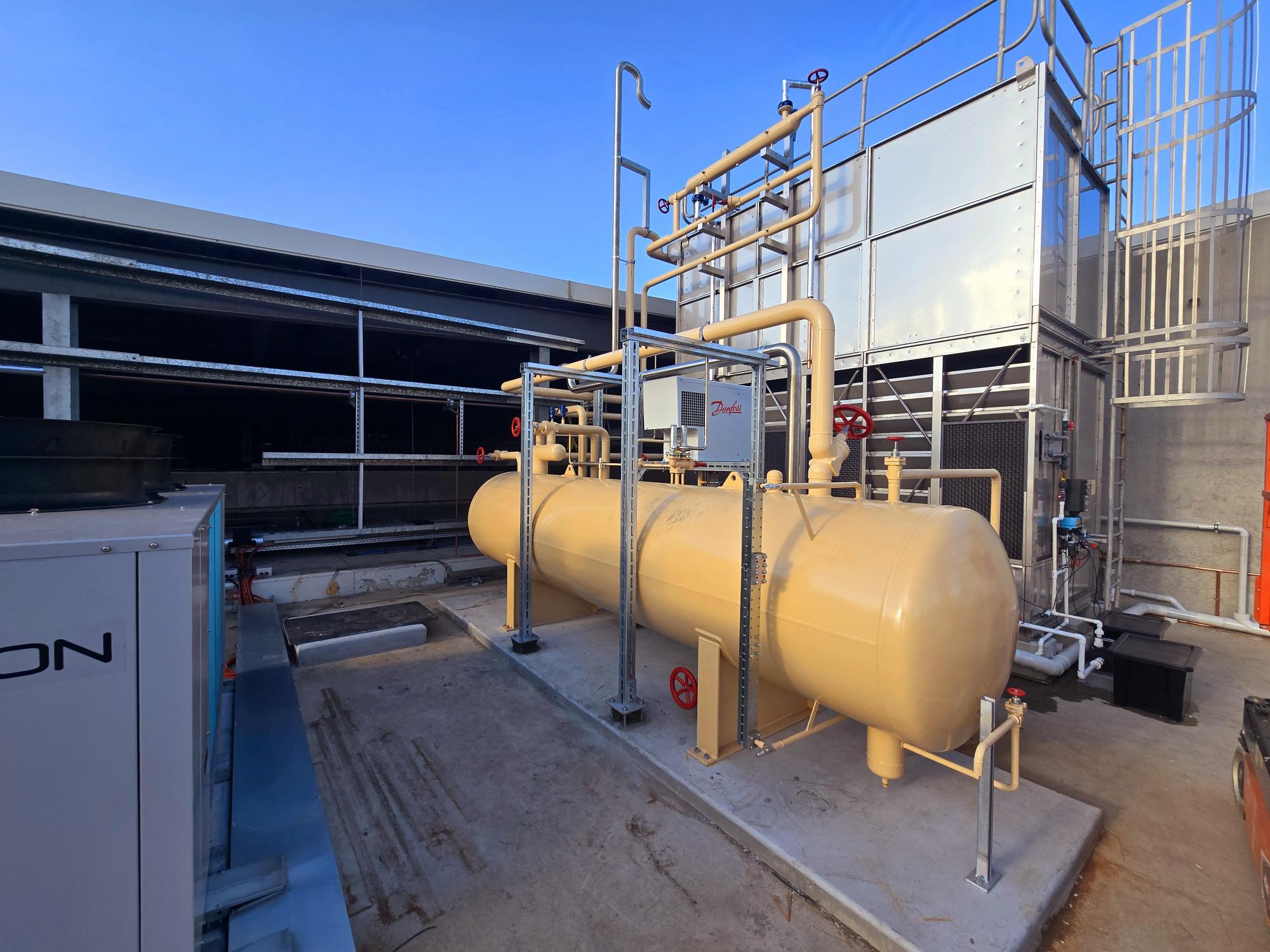

Liquid receiver for back-up duty of the plant and for thermosyphon oil cooling;
Economiser vessel suitably sized for the economiser load of the plant;
Accumulator vessel suitably sized for the 445kw spiral freezer;
Design of the new refrigeration plant room to install the refrigeration equipment;
Katabatic evaporative condenser with three 4.5kw VSD fan motors and one 2.2kw DOL water circulation pump;
Copper pipework, PVC overflow and waste piping, and ducting made from galvanized sheet metal;
Danfoss self-contained air purger installed on the condenser deck;
Desuperheater heat recovery system for warm water defrost;
Ammonia safety equipment, detection, and ventilation (as per AS 5149 compliance);

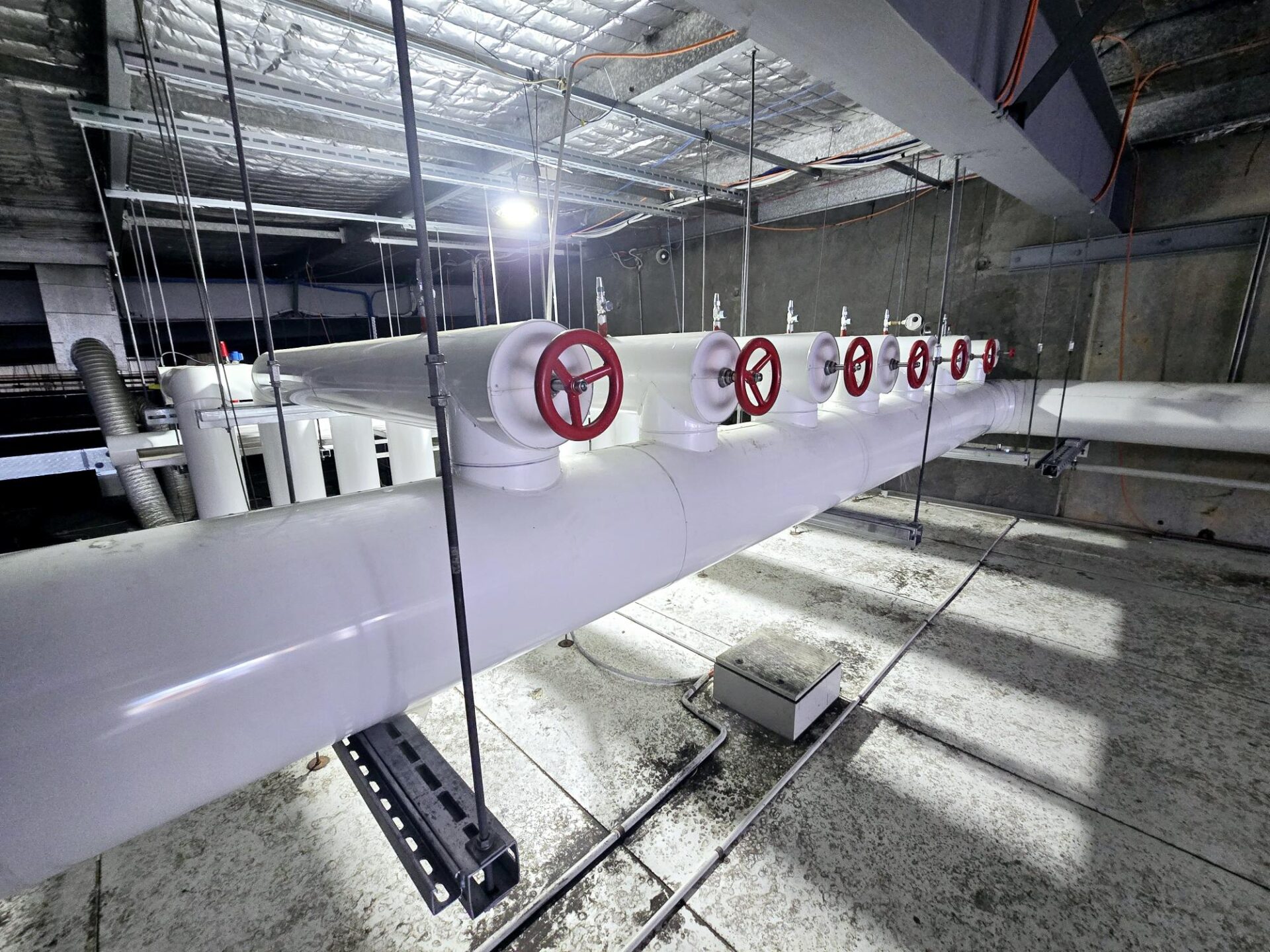

Three ICF control valve stations installed above the spiral freezer; and
Installation of a 1000 Amp MCC in the refrigeration switch room.
